| Item | Specification |
|---|---|
| CPU | Intel® Twin Lake N Series, Quad-Core Quad-Thread, Intel7 Process, Max Turbo 3.6GHz, 6MB Cache, TDP 6W (Turbo Peak up to 15W) |
| CPU Model | N150 |
| CPU Socket/Package | FCBGA1264, 35mm x 24mm |
| GPU | Intel® Super Core Graphics, up to 1000MHz |
| Execution Units | 24 |
| Memory | LPDDR5 4800MT/s, onboard 12GB (expandable to 16GB with MOQ) |
| Storage | M.2 2280 NVMe (PCIe3.0) 512GB or 64GB eMMC (for Ubuntu installation). Note: When both SSD and other storage are installed, the PCIe drive boots first. If a Windows SSD is installed, the system defaults to Windows (press F7 to switch); without an SSD, Ubuntu boots automatically. |
| Built-in Storage Expansion | M.2 2280 PCIe expansion, supports up to 4TB per drive, total expansion up to 16TB; not compatible with M.2 2242 |
| Graphics Output | Dual HDMI, supports up to 4096x2160 @60Hz (4K60Hz) |
| Network | WiFi 6 (Intel AX101, up to 600Mbps), Bluetooth 5.2, Dual Gigabit LAN (supports 2500M/1000M/100M/10M, Intel i226) |
| Power | Built-in coin cell battery; Charger: Type-C, 19V/3.42A (power supply only, data not supported) |

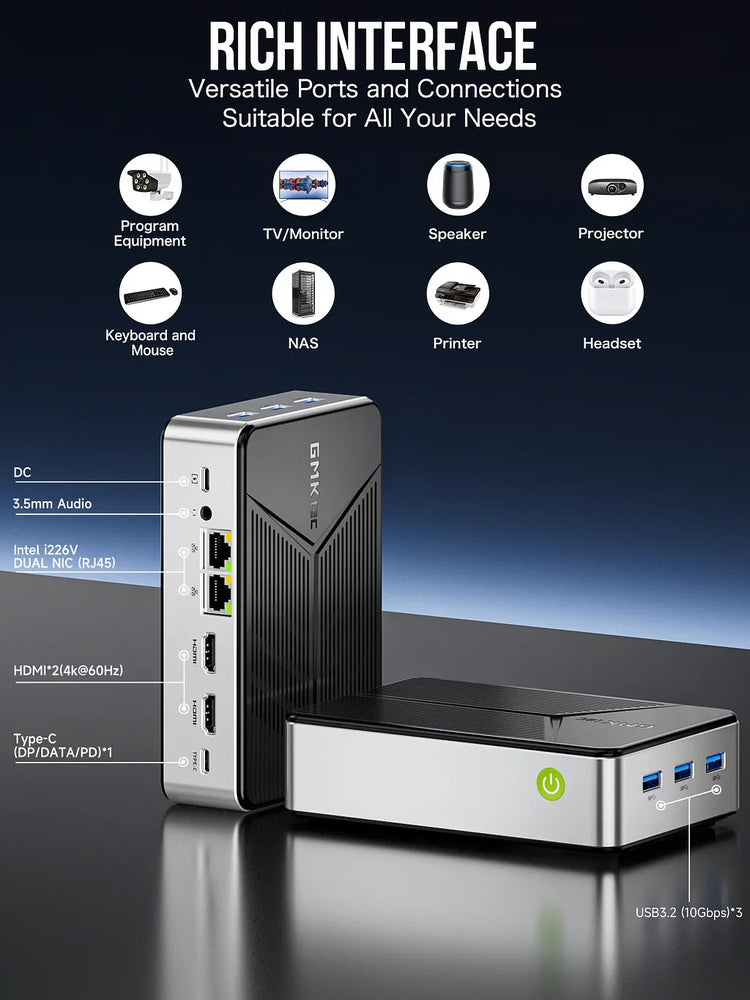

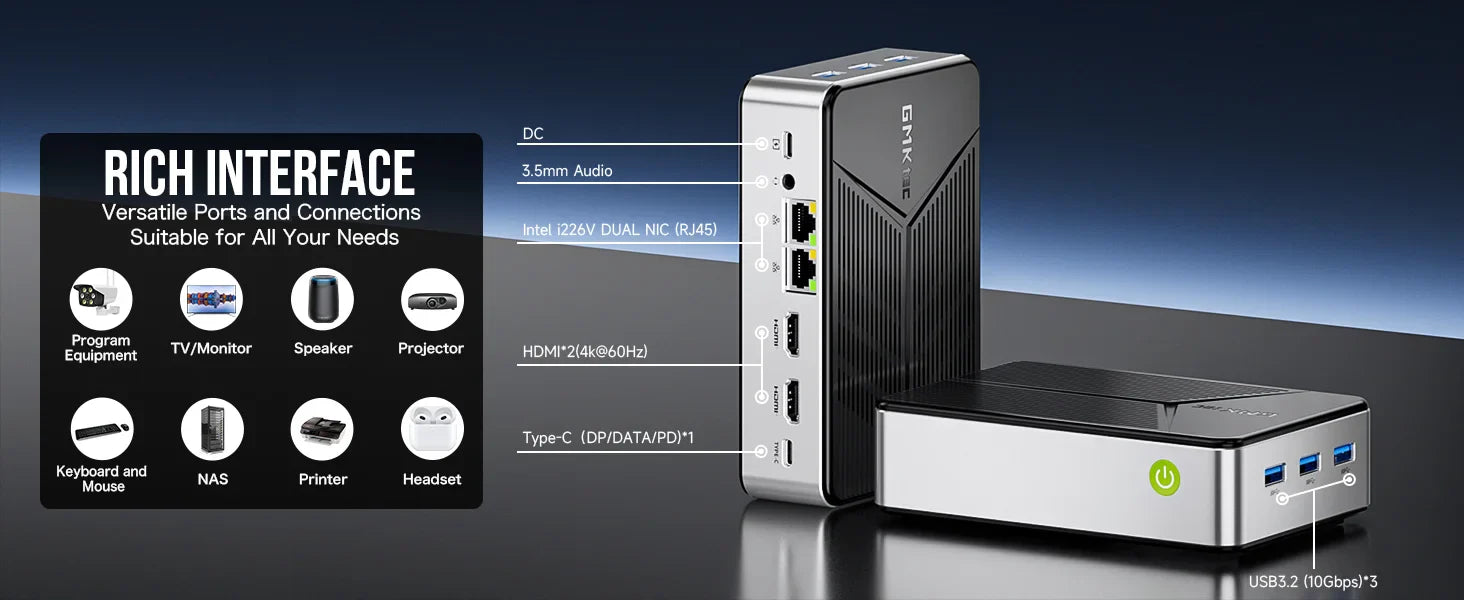

| External Ports | USB-A: 3 x USB 3.2 Gen2 (10Gbps/S) Type-C: 1 (supports DP/DATA/PD via HDMI assistance, 10Gbps/S, not for power charging) HDMI: 2 Audio: 3.5mm CTIA (integrated Realtek ALC269) RJ45: 2 (Gig LAN) |
| Chassis Dimensions | 146.6 x 100.25 x 38.75 mm |
| Operating System | Dual System: Windows 11 Pro + Ubuntu 24.10. Note: Without SSD shipment, only Ubuntu is supported; default boot is Windows, can be switched via BIOS or F7 at startup. |
| Language Support | 15 languages (Default English; supports Simplified Chinese, Traditional Chinese, French, Thai, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic, Italian, Dutch) |
| Application Scenarios | Soft Router, NAS; suitable for home use, small & medium enterprises, smart manufacturing, creative design, smart retail, medical, education, live streaming, etc. |

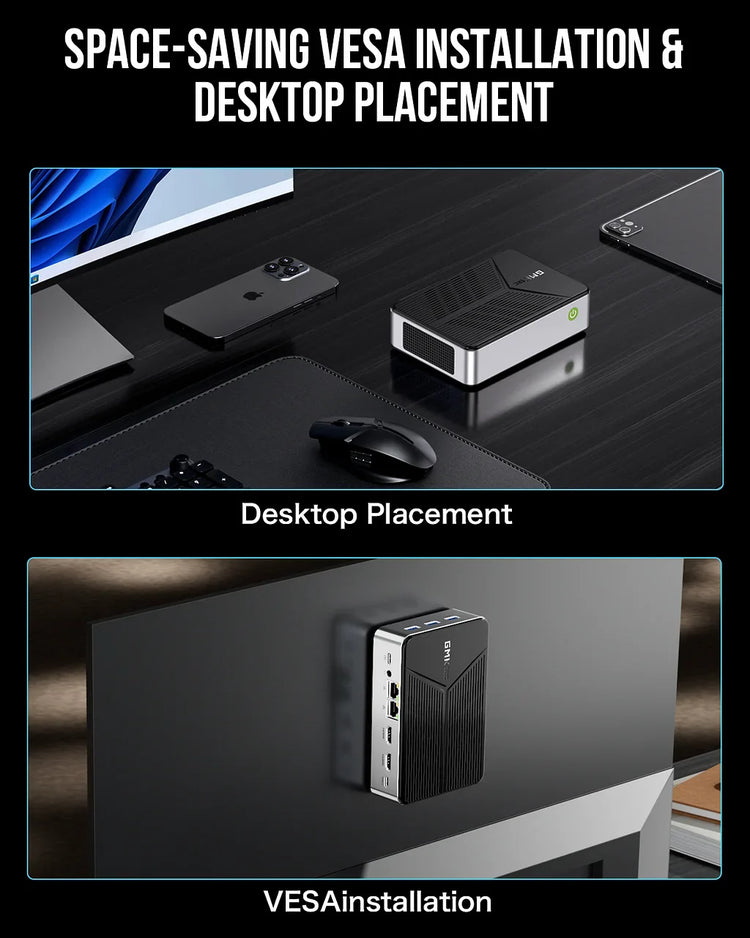

| Packaging List | Standard Package: User Manual, Warranty Card, Power Adapter, VASA Stand, HDMI Cable |

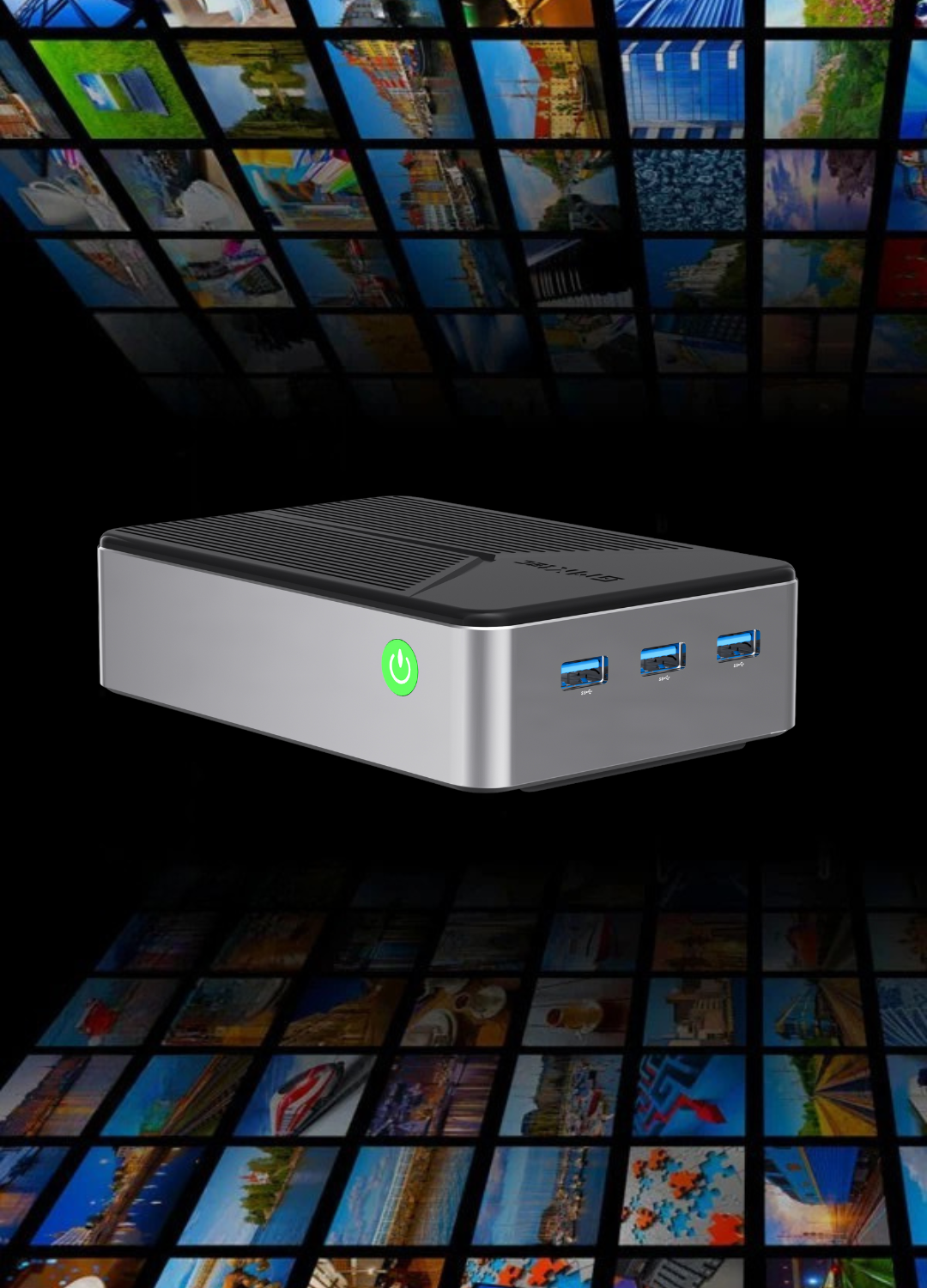

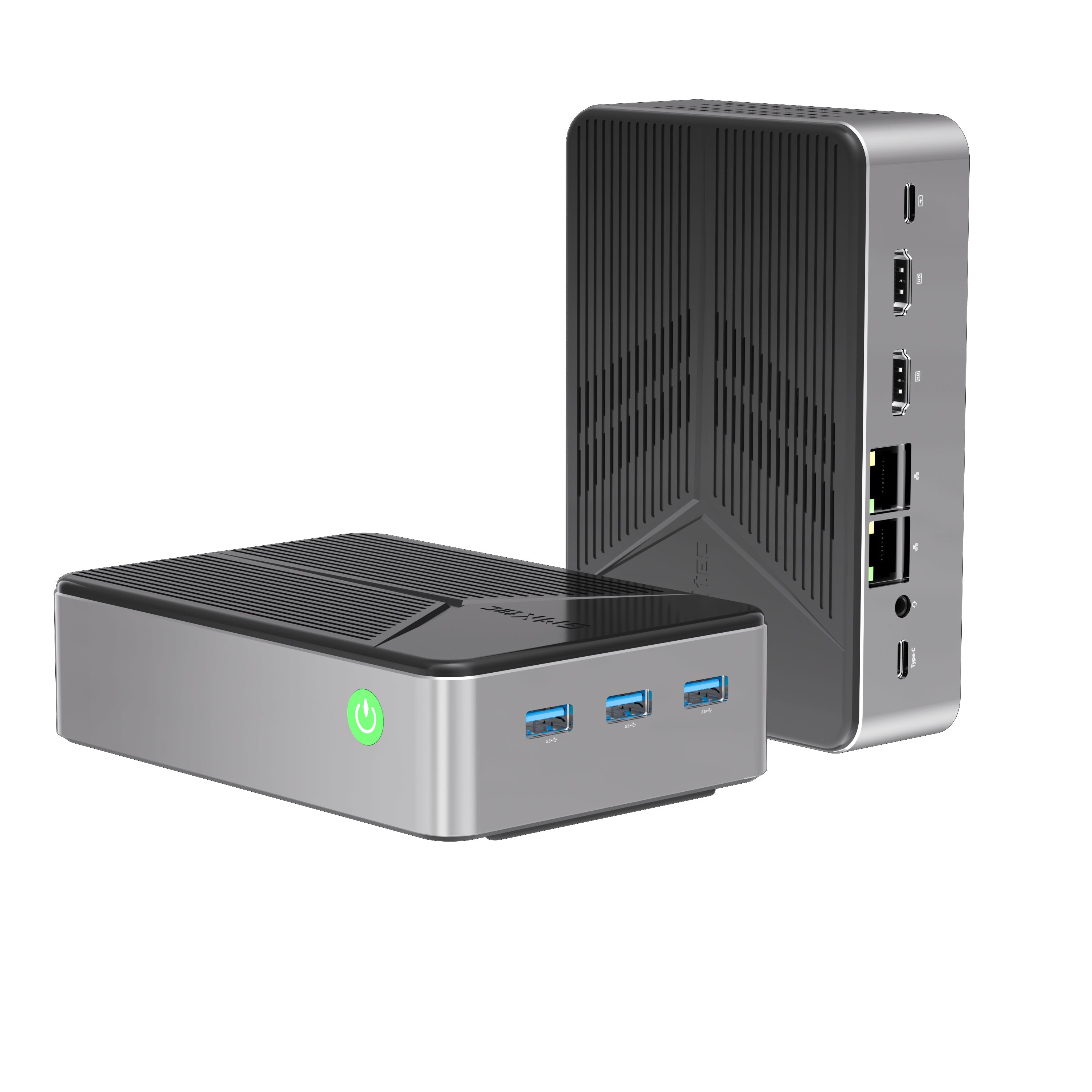

GMKtec G9 N150 NAS Mini PC

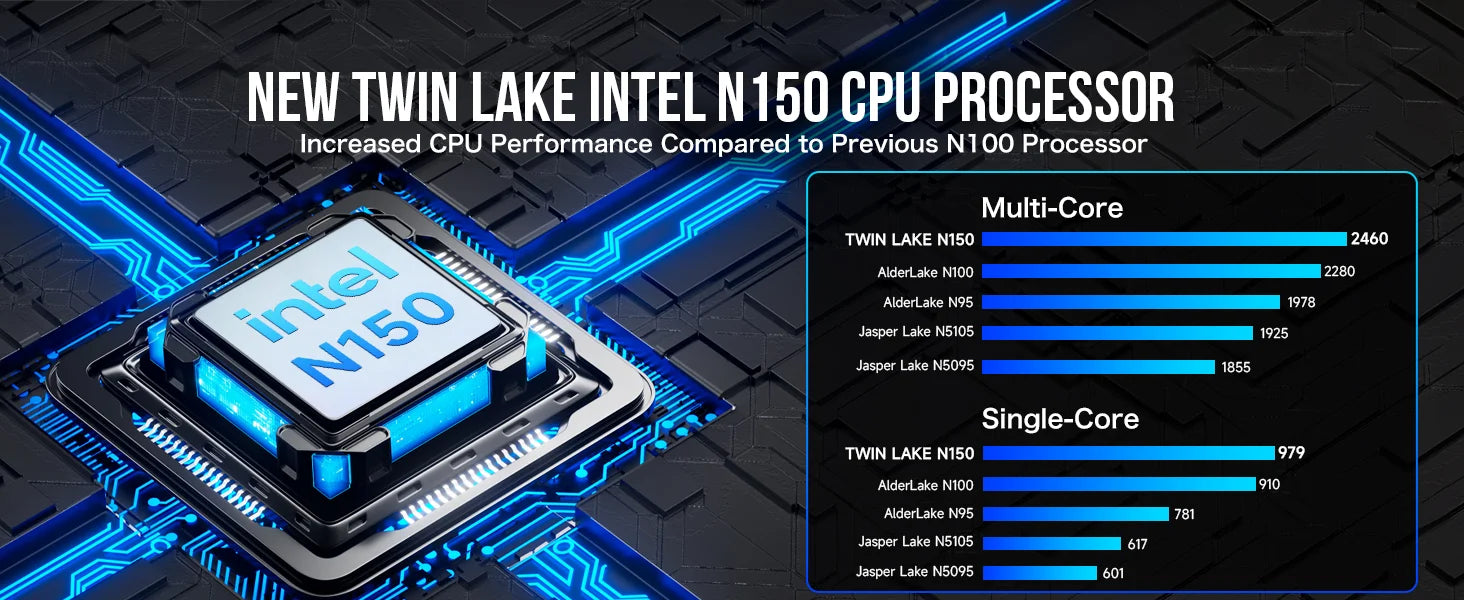

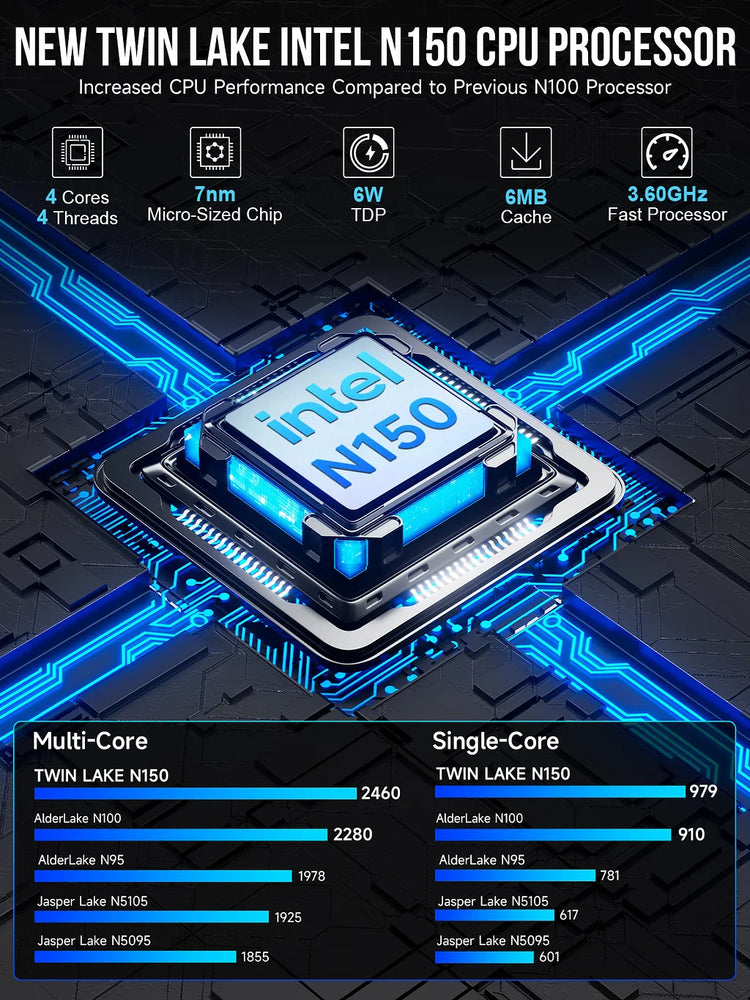

Intel® Twin Lake N150
Intel® Super Core Graphics
up to 1000MHz

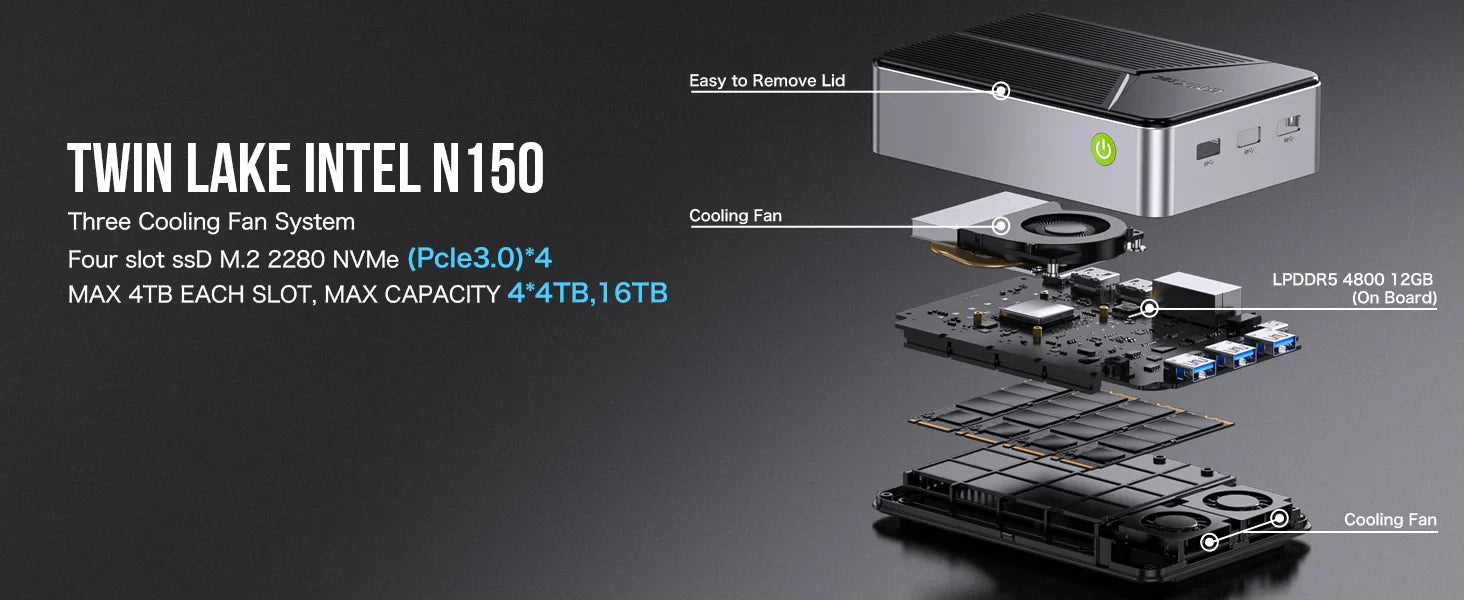

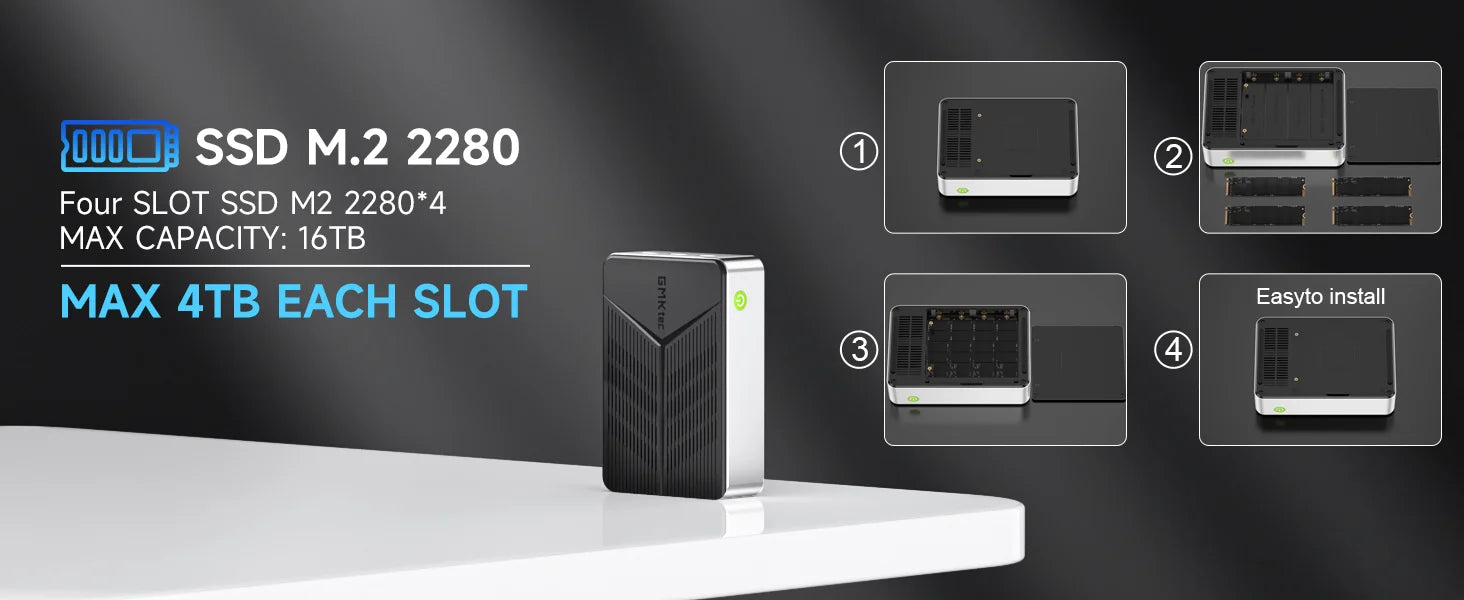

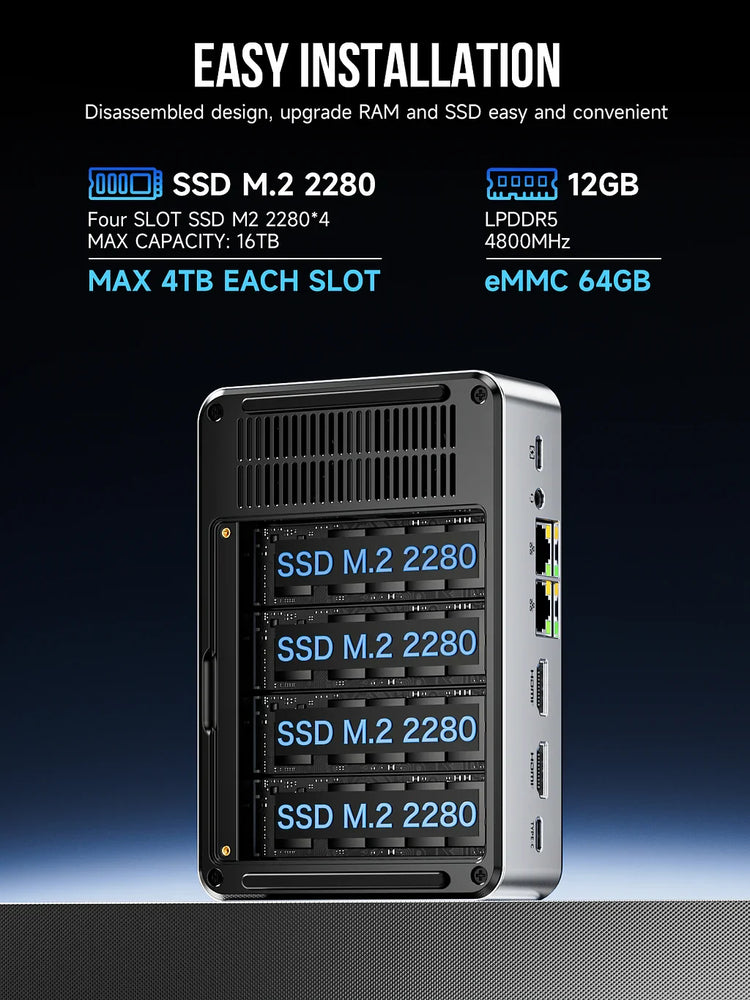

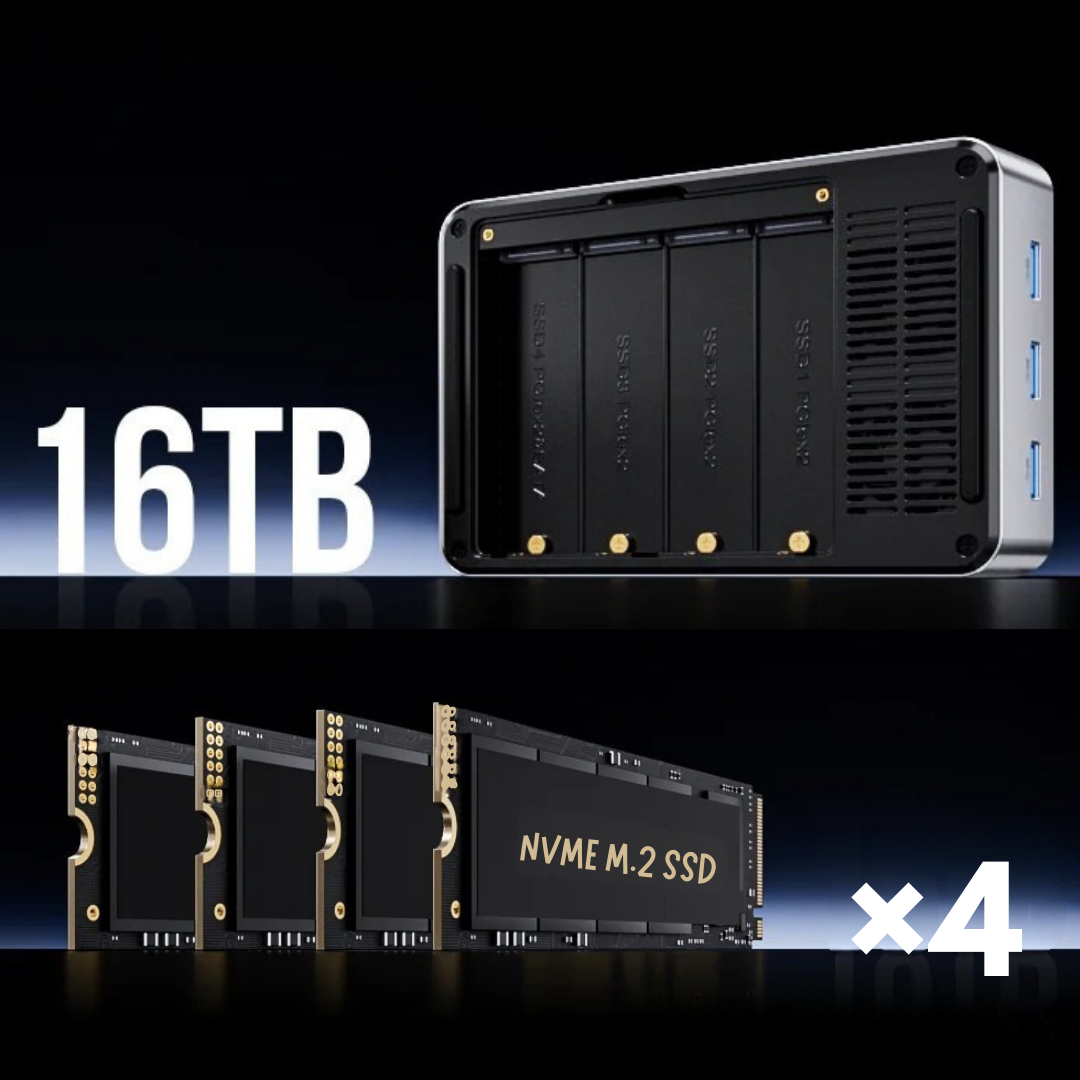

4×SSD Slot,Max 16TB
PCle 3.0 M.2 2280 SSD
LPDDR5 4800MT/s
onboard 12GB (expandable to 16GB with MOQ)
Two systems running simultaneously
Win 11 Pro, Linux,Ubuntu

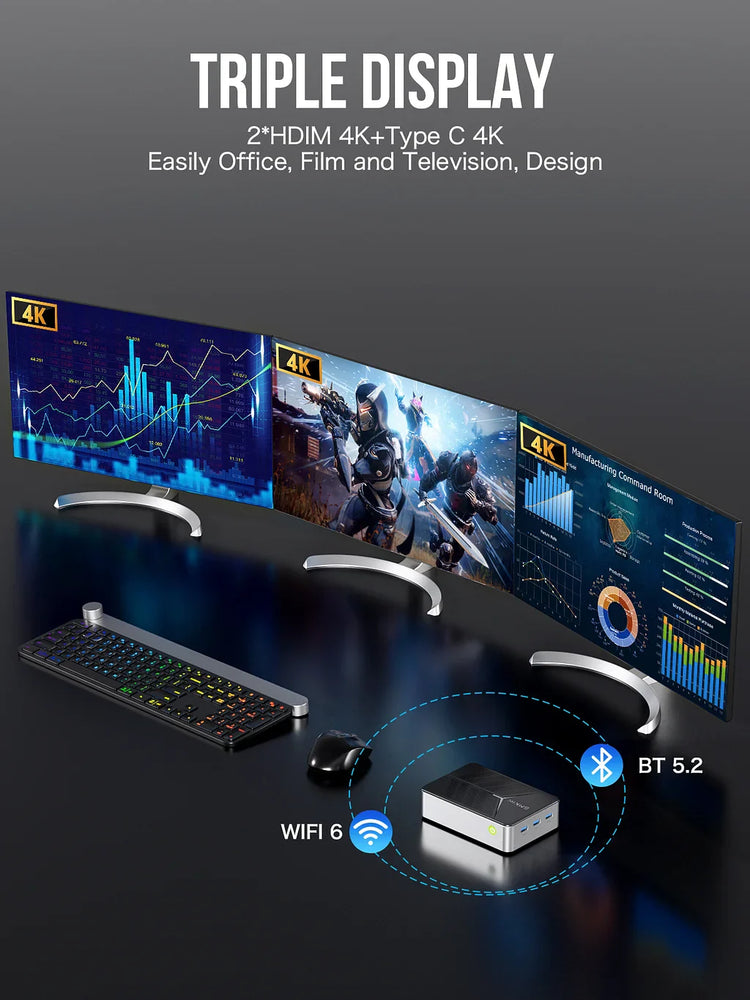

Triple Screens Display
HDMI*2+Type-C
WIFi 6+BT5.2

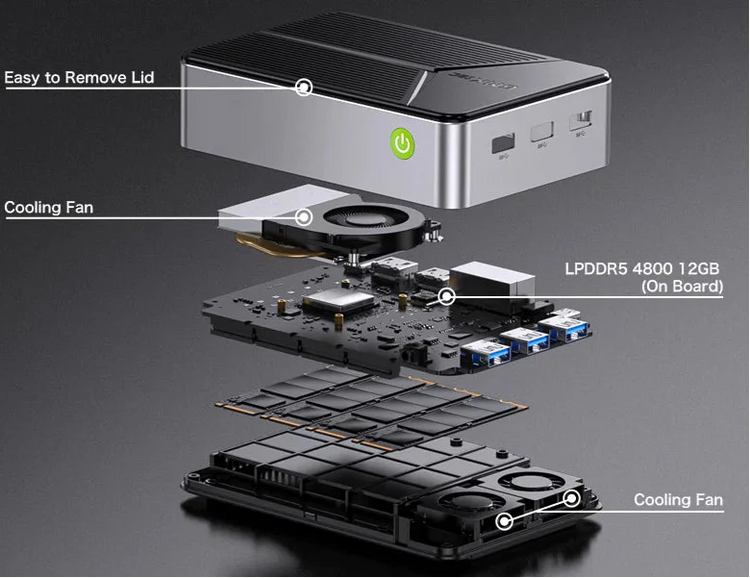

Triple Silent Cooling Fans
DDR/SSD/CPU Advanced Cooling
MEDIA STREAMING SERVER HUB
Torrent downloads run in the background, ready to play anytime on the G9 Mini PC.

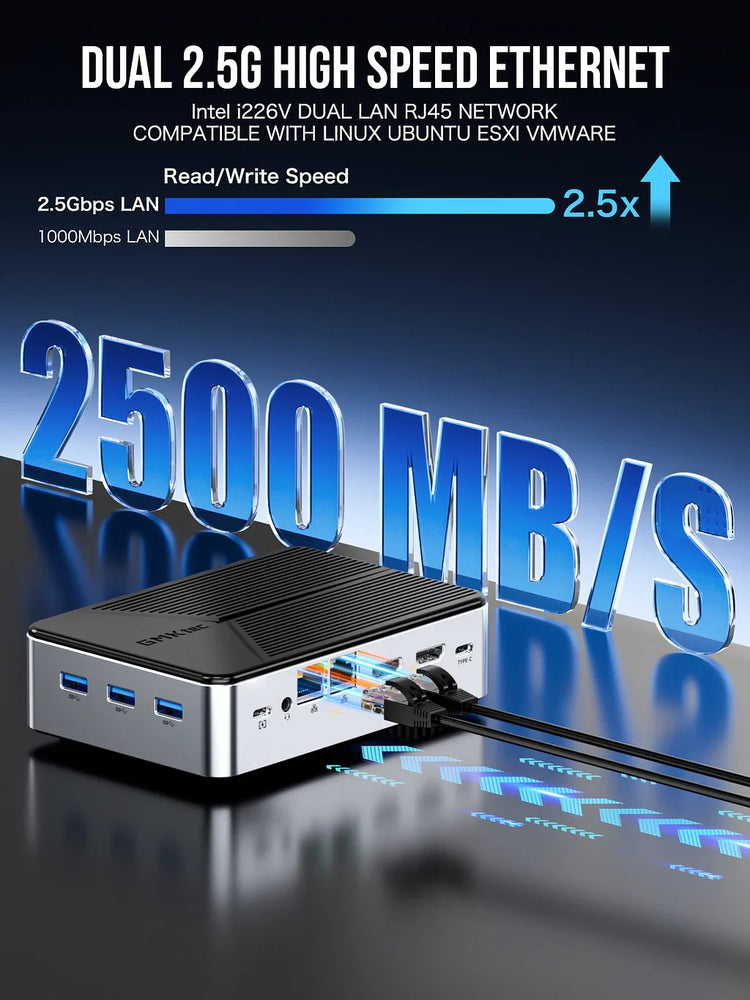

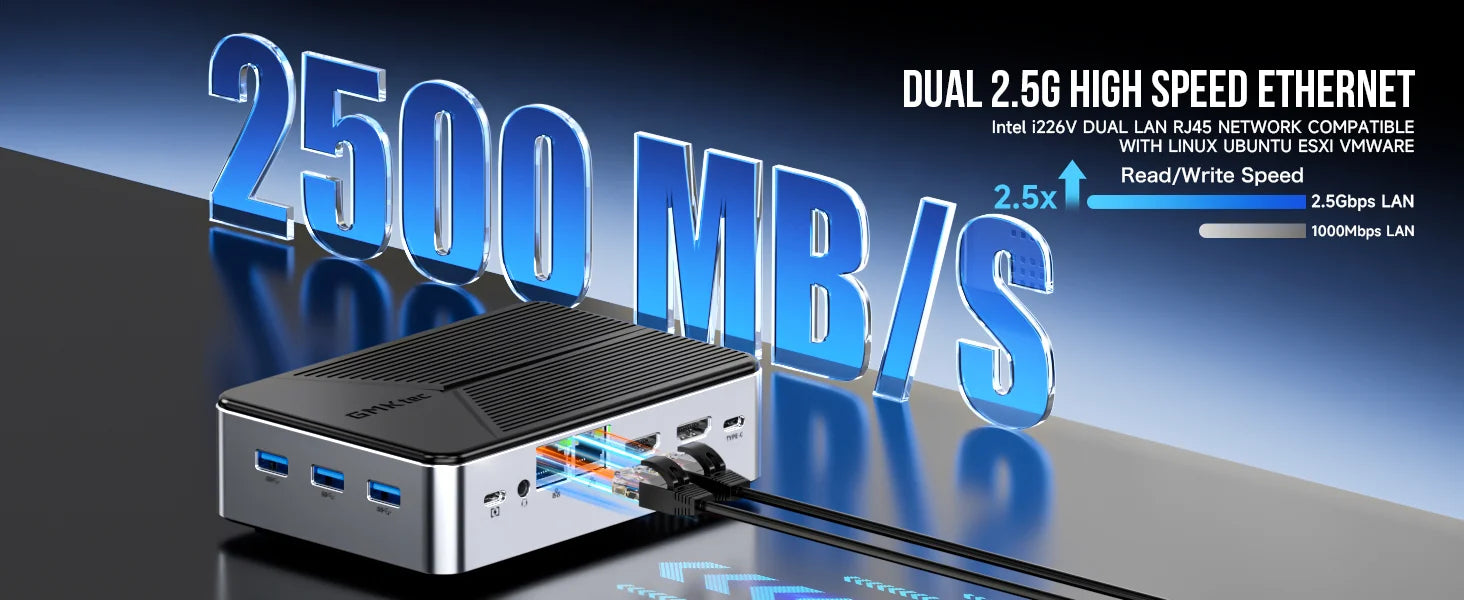

Dual Lan
2500Mbps×2
Intel® Twin Lake N150
Intel® Super Core Graphics
up to 1000MHz
4×SSD Slot,Max 16TB
PCle 3.0 M.2 2280 SSD
LPDDR5 4800MT/s
onboard 12GB (expandable to 16GB with MOQ)
Two systems running simultaneously
Win 11 Pro, Linux,Ubuntu
Triple Screens Display
HDMI*2+Type-C
WIFi 6+BT5.2
Triple Silent Cooling Fans
DDR/SSD/CPU Advanced Cooling
MEDIA STREAMING SERVER HUB
Torrent downloads run in the background, ready to play anytime on the G9 Mini PC.
Dual Lan
2500Mbps×2
Windows 11 Pro: Compatible with office, entertainment, and everyday applications.
Linux / Ubuntu / TrueNAS: Lightweight and efficient, ideal for NAS, home server, Docker, and virtual machines.
👉 Switch with one click at startup—seamlessly balancing work and storage.
Background Downloads:
The G9 NAS supports torrent/BitTorrent downloads directly on the device, running silently in the background without the need to keep a computer on.
Seamless Playback:
Once downloaded, movies and music are stored on the G9 Mini PC and can be played instantly across your devices, including phones, tablets, laptops, and TVs.
All-in-One Convenience：
Enjoy a true home server experience—download, store, and stream your favorite media anytime, anywhere.
